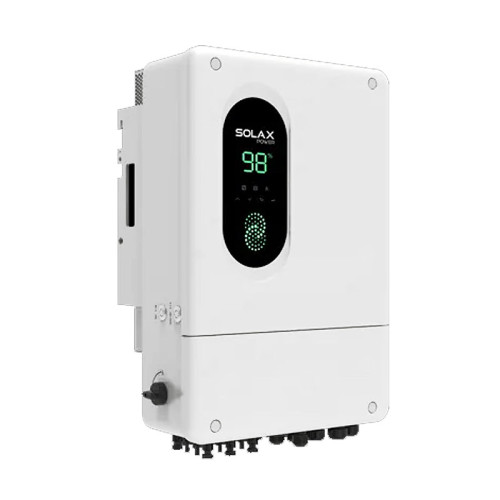

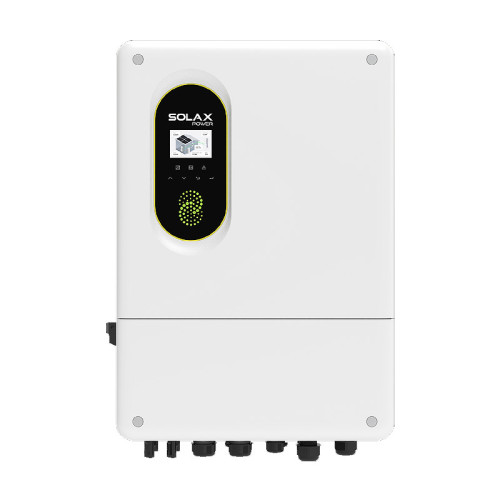

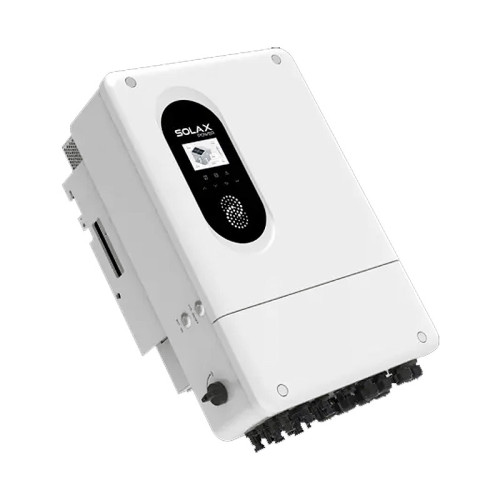

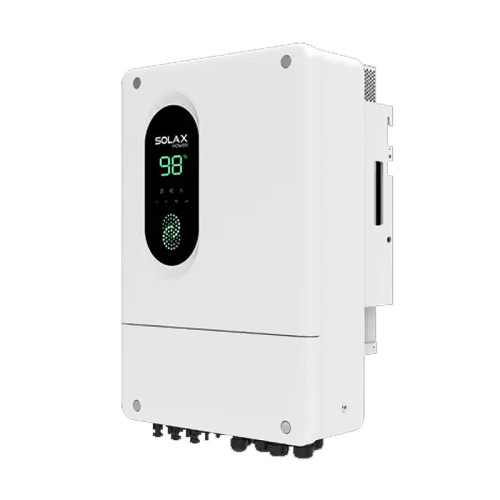

Hybrid solar inverter Solax PROSOLAX X1-Lite-12.0-LV (12 kW, 1 phase, 3 MPPT)

Solax PROSOLAX X1-Lite-12.0-LV Hybrid Solar Inverter

Powerful Inverter for Maximum Autonomy

Solax PROSOLAX X1-Lite-12.0-LV is a high-performance hybrid inverter with a single-phase output and three MPPTs, rated for up to 12 kW. It is ideal for large private households or commercial facilities requiring maximum efficiency, flexibility, and off-grid capability.

Manufacturer Solax Power

Reliability Proven Over Years

The Solax Power brand is globally recognized for its innovative developments in inverter technology. The company supplies solutions for solar power systems tailored to various countries' conditions. All devices are certified (CE, IEC, G99, VDE), undergo strict quality control, and come with an official warranty.

Solax has implemented tens of thousands of projects in over 60 countries.

Overview of Solax X1-Lite-12.0-LV

High Power and Scalability

The X1-Lite-12.0-LV model is designed to work with large arrays of solar panels and 48 V battery systems. The inverter efficiently redistributes energy between consumption, battery charging, and feeding excess power to the grid. It supports backup power mode, ensuring stable operation even during power outages.

How the Solax X1-Lite-12.0-LV Works

Smart Management in Three Stages

The inverter operates in real-time:

1. Prioritizes energy supply — load, battery, grid;

2. Charges batteries with excess solar energy;

3. Feeds remaining energy to the external grid or stores it for nighttime use.

In case of an outage, it instantly switches to battery power, ensuring uninterrupted operation of critical devices.

Technical Specifications of Solax PROSOLAX X1-Lite-12.0-LV

Key Parameters:

• Power: 12000 W

• Phase: 1 (230 V)

• Number of MPPTs: 3

• Maximum PV Module Power: up to 18000 W

• MPPT Voltage Operating Range: 125 – 600 V

• Battery System: 48 V (lithium or lead-acid batteries)

• Max. Charge/Discharge Current: 140 A

• Inverter Efficiency: up to 97.6%

• Backup Power Switching Time: <10 ms

• Protection Rating: IP65 (suitable for outdoor installation)

• Interfaces: RS485, CAN, Wi-Fi, Ethernet, Meter, USB

Advantages of Solax X1-Lite-12.0-LV

Power, Stability, Control

• Powerful 12 kW single-phase output

• 3 MPPTs for flexible configuration of various solar panel arrays

• Automatic backup power mode

• High efficiency with battery operation

• Compatibility with modern BMS systems (Solax, Pylontech, etc.)

• Remote monitoring and control via cloud portal

• Reliable protection against overvoltage, short circuits, and overheating

Installation and Configuration

Easy Integration into Your Energy System

The inverter is quickly mounted on a wall using a standard mounting kit. Installation requires no complex programming — everything is configured via an intuitive menu or online through Wi-Fi. Our engineers provide full support, from project design to system launch.

Price of Solax PROSOLAX X1-Lite-12.0-LV

Investment in Stable Energy Independence

The cost of this model depends on the chosen configuration, battery inclusion, and scope of installation work. Our company offers official equipment with warranty and service. Seasonal promotions and bonuses are available for comprehensive orders.

Who Is the X1-Lite-12.0-LV For?

Ideal For:

• Private homes with high energy demands

• Offices requiring backup power

• Facilities with large roofs for installing multiple solar arrays

• Users aiming to minimize electricity bills

• Those who value full control over energy consumption

How to Order Solax X1-Lite-12.0-LV?

Quick Ordering and Professional Support

Simply submit a request on our website or call us. Our specialists will select the optimal solution, assist with battery selection, delivery, and installation. We guarantee official products, support, and maintenance.

Lirik Solar – Your Solar Energy Expert

Reliability Backed by Experience

We have been helping clients implement solar solutions since 2016. Over 700 solar power system projects have been completed, many of which are based on Solax Power inverters.

Order Solax PROSOLAX X1-Lite-12.0-LV Today!

Maximum Power – Minimum Grid Dependency

Choose an efficient, smart, and reliable solution for your home or business. Fill out the order form or contact our team — we’ll handle everything turnkey.

Solax PROSOLAX X1-Lite-12.0-LV Datasheet
